Cold block for 0.8 mL shallow deep well 96-well plates

Most "deep well" cold blocks are cut for 2 mL plates. This one isn't — it is machined specifically for the shallow 0.8 mL plate class, which sits about half as deep and will not seat correctly in a full-depth block.

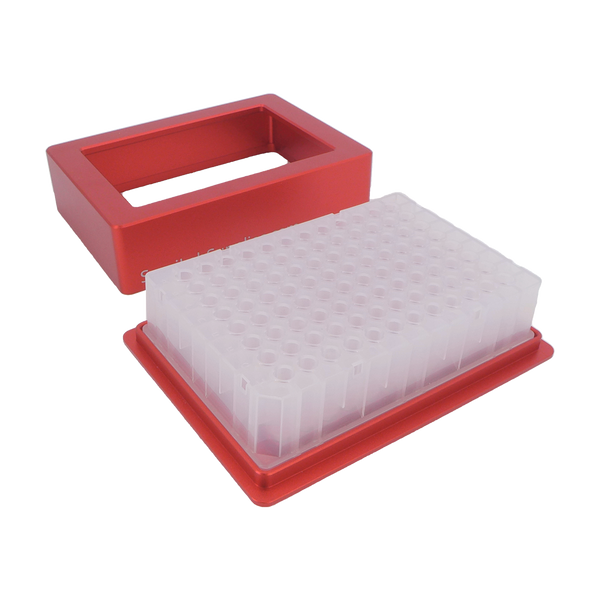

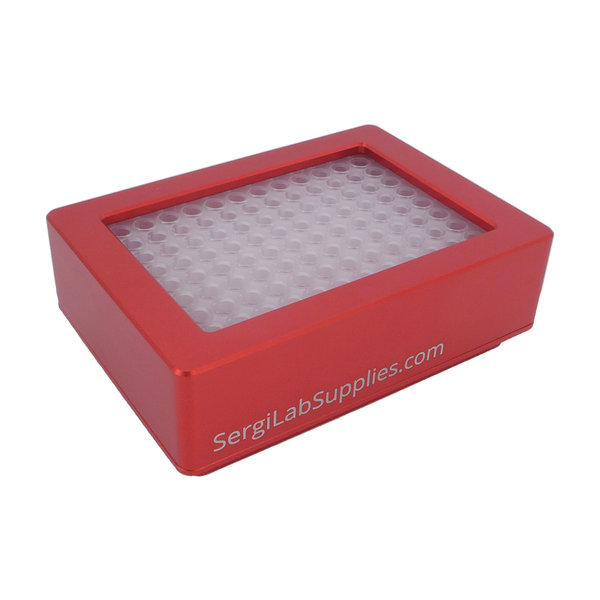

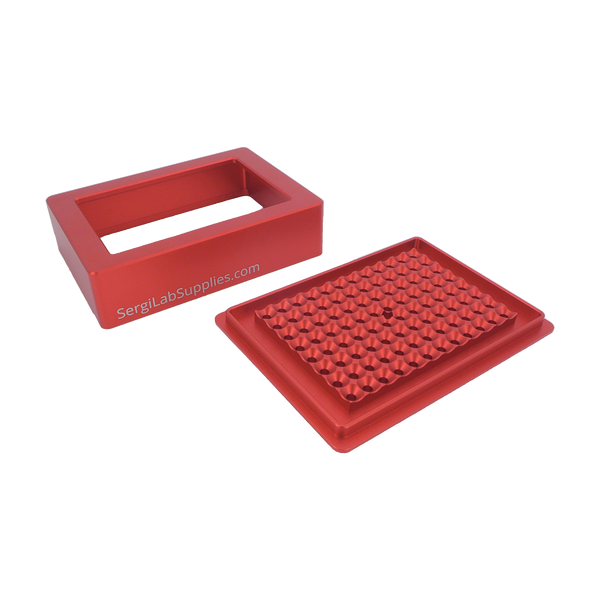

The base tray carries repeats the shape of a typical 96 wells plate, maximizing heat exchange area, so each sample is cooled through its own bottom rather than only through the plate skirt. The lift-off collar drops over the loaded plate and locates it without wedging it — plates come out as easily as they go in. It was designed to a customer's explicit request that it should not be a tight fit.

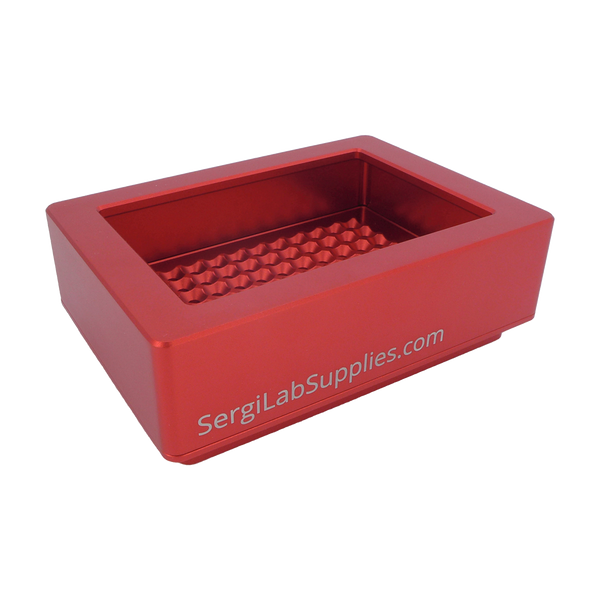

Machined from solid aluminum and hard anodized. Aluminum carries far more thermal mass than a plastic rack, so a block chilled in an ice bath, a 4 °C fridge or a −20 °C freezer keeps working after it leaves them — useful for RNA and library-prep steps that have to stay cold on the bench.

The bottom of the rack is an SBS / ANSI footprint and engages 10 mm into standard SBS slots, so the block drops into liquid handler decks, shakers and plate racks.

Designed for: 800 µL round-well, V-conical-bottom shallow deep well plates — tested with Thermo Scientific Abgene AB-0859; AB-0765 is the same plate class.

Not for 2 mL / 2.2 mL full-depth deep well plates — for those, use our standard deep well cold block (SKU 1014a).

Not sure which plate you have? Send us the manufacturer and part number before you order and we will confirm the fit.

Specifications

• Fits: 96-well shallow deep well plates, 0.8 mL / 800 µL, round wells, V-conical bottom
• Positions: 96, individual contact pins
• Overall size: 140.0 × 100.0 × 38.8 mm
• Base skirt: 127.66 × 85.38 mm, SBS/ANSI footprint, 10 mm slot engagement
• Material: CNC-machined aluminum, anodized

• SKU 1076 · UPC 664792674353
